Napajanja
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.
The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.
Brand: GIGABYTE
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.
The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

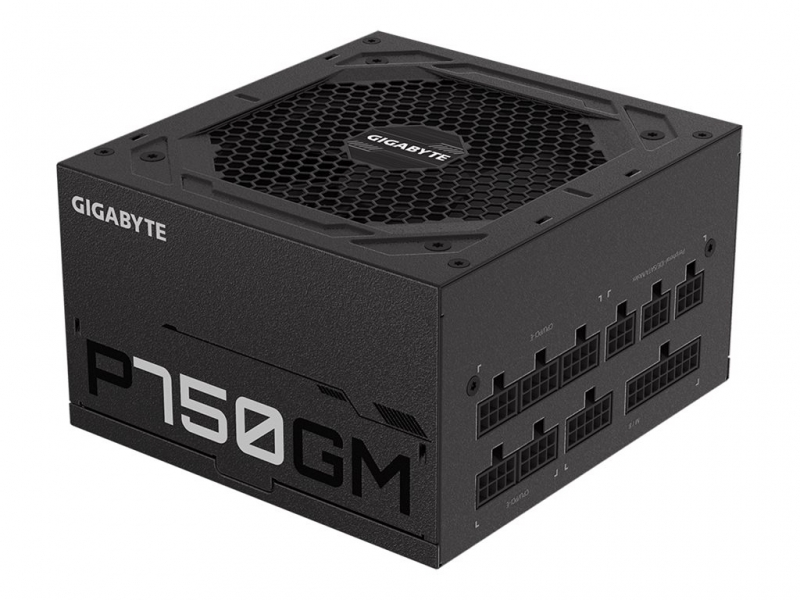

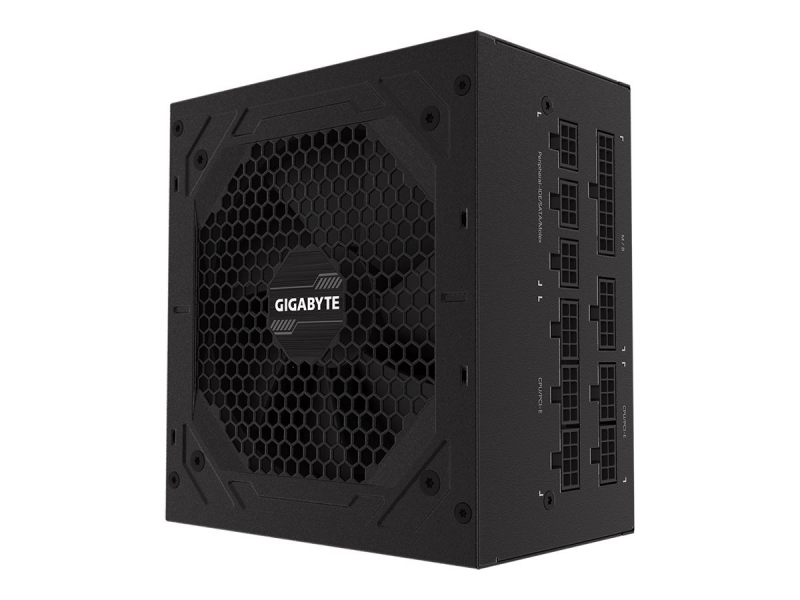

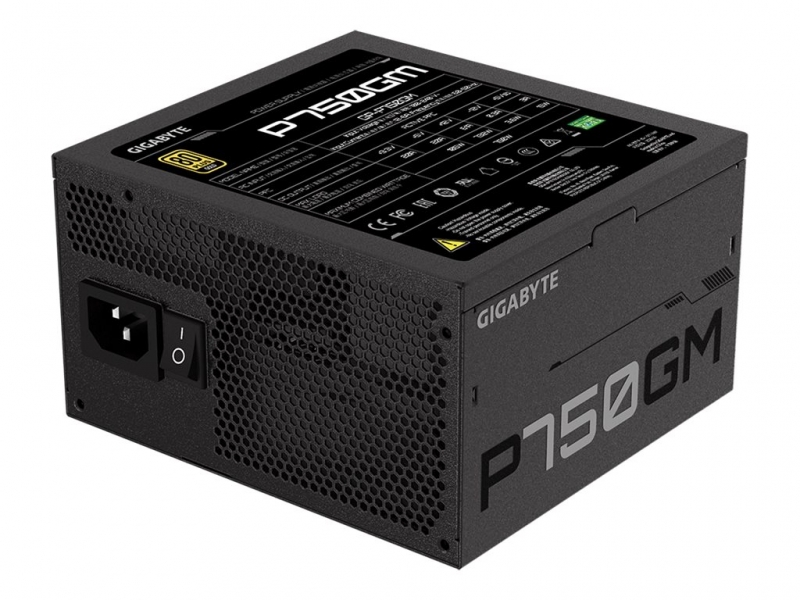

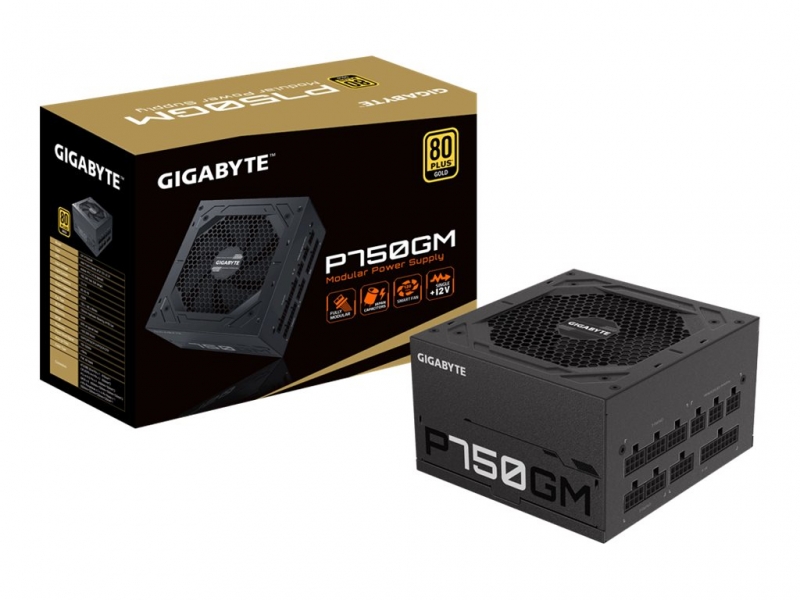

GIGABYTE GP-P750GM 750W ATX 12V v2.31 80 PLUS Gold certified Power Supply
 |
||
| Manufacturer | GIGABYTE | |
| Manufacturer Part No | GP-P750GM | |
| Marketing Description | |
| All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance. 80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money. The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability. | |
| Product Features | |
|
|
| Product Properties | |
| Product Description | Gigabyte P750GM - power supply - 750 watt |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.31 |
| 80 PLUS Certification | 80 PLUS Gold |
| Input Voltage | AC 100-240 V |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 750 watt |
| Output Current |
+3.3V - 20 A
+5V - 20 A +12V - 61 A -12V - 0.3 A +5VSB - 3 A |

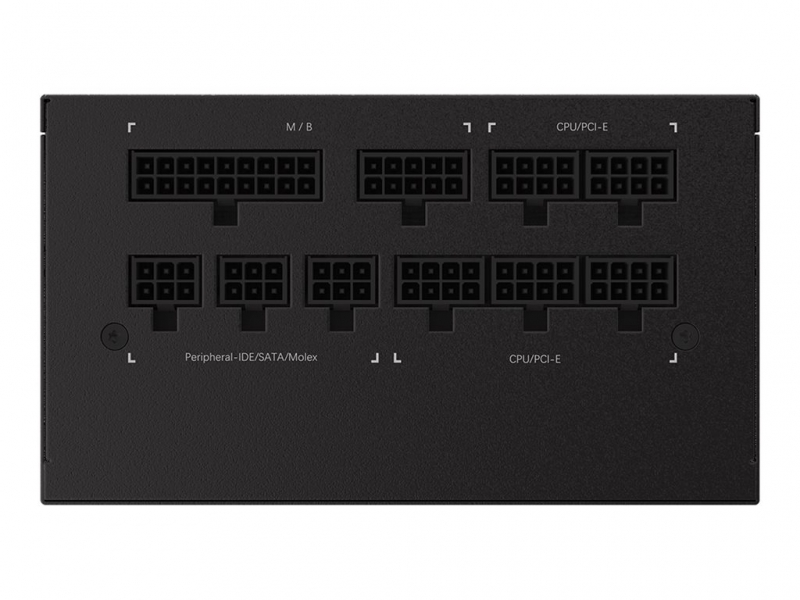

| Output connectors |
1 x power 24 pin ATX with detachable 4 pin section
2 x power 8 pin EPS12V with detachable 4 pin ATX12V section 4 x 8 pin PCI Express power with detachable 2 pin section 8 x 15 pin Serial ATA power 3 x 4 PIN internal power 1 x 4 PIN mini-power connector |
| Modular Cable Management | Yes |

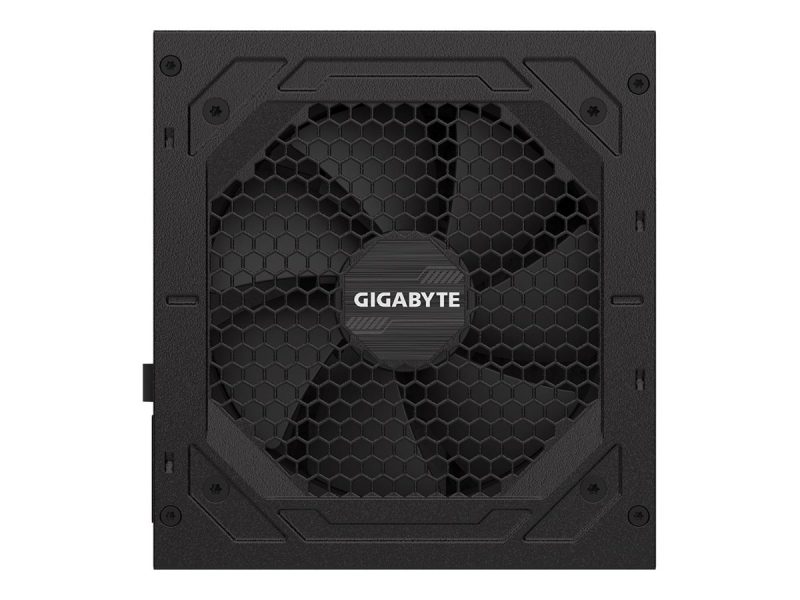

| Cooling System | 120 mm fan |
| Dimensions (WxDxH) | 15 cm x 14 cm x 8.6 cm |
| Manufacturer Warranty | 5-year warranty |
Technical data provided by third party. We assume no liability for errors within these data.
Brand: GIGABYTE
Barkod: 4719331551759
