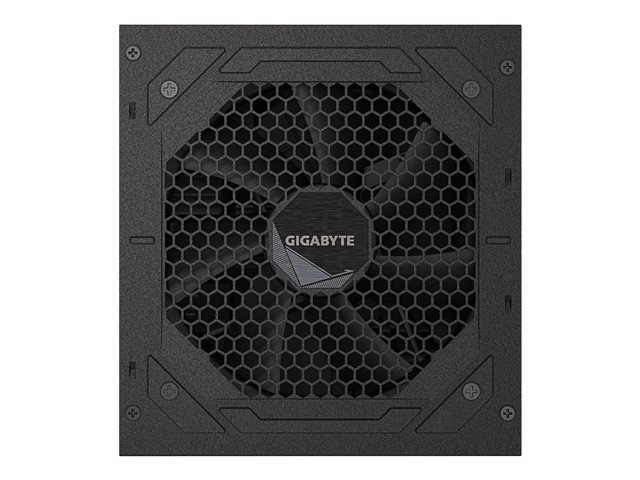

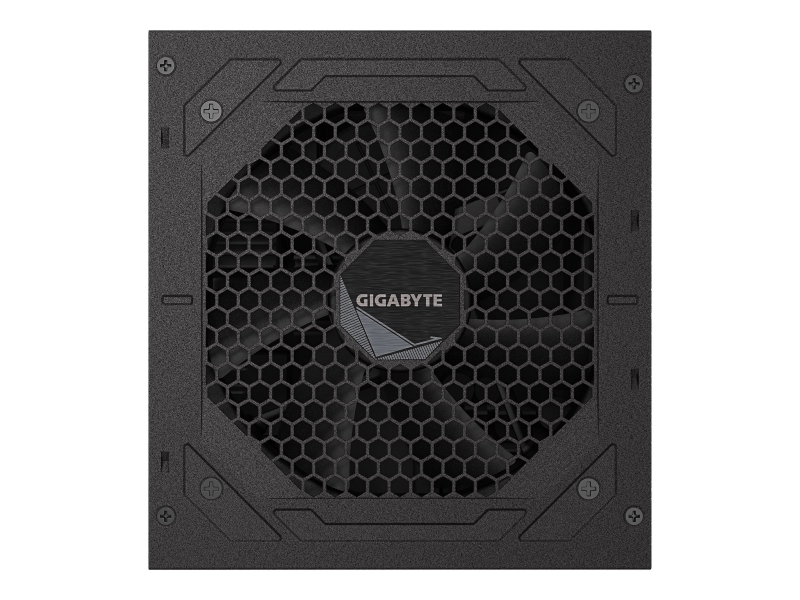

The GIGABYTE UD750GM PG5 V2 is a reliable power supply, delivering 750 W to support high-performance systems. With compliance to ATX12V 3.1/EPS12V standards and an efficiency rating of 80 PLUS Gold, this power supply offers energy savings without compromising performance. Designed with fully modular cable management, it allows for easier installation and better airflow within the case.
Brand: GIGABYTE
GIGABYTE GP-UD750GM PG5 V2 750W 80+ Gold
 |
||
| Manufacturer | GIGABYTE | |
| Manufacturer Part No | GP-UD750GM PG5 V2 | |
| Marketing Description | |
| The GIGABYTE UD750GM PG5 V2 is a reliable power supply, delivering 750 W to support high-performance systems. With compliance to ATX12V 3.1/EPS12V standards and an efficiency rating of 80 PLUS Gold, this power supply offers energy savings without compromising performance. Designed with fully modular cable management, it allows for easier installation and better airflow within the case. | |
| Product Features | |
|
|
| Product Properties | |
| Product Description | Gigabyte UD750GM PG5 V2 - power supply - 750 watt |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 3.1/ EPS12V |
| 80 PLUS Certification | 80 PLUS Gold |
| Input Voltage | AC 100-240 V |
| Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
| Power Capacity | 750 watt |
| Output Current |
+3.3V - 20 A
+5V - 20 A +12V - 62.5 A -12V - 0.3 A +5VSB - 3 A |
| Output connectors |
1 x power 24 pin ATX with detachable 4 pin section
2 x power 8 pin EPS12V with detachable 4 pin ATX12V section 1 x 16 pin PCI Express power 4 x 8 pin PCI Express power with detachable 2 pin section 8 x 15 pin Serial ATA power 3 x 4 PIN internal power |
| Modular Cable Management | Yes |
| Cooling System | 120 mm fan |
| Dimensions (WxDxH) | 15 cm x 14 cm x 8.6 cm |
Technical data provided by third party. We assume no liability for errors within these data.
Brand: GIGABYTE
Barkod: 4719331555870
